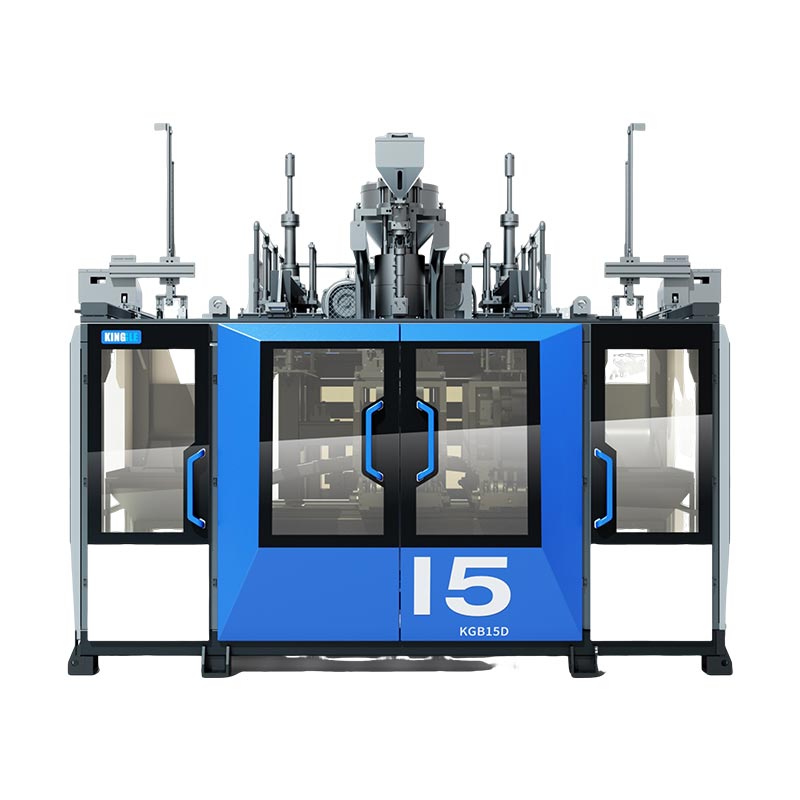

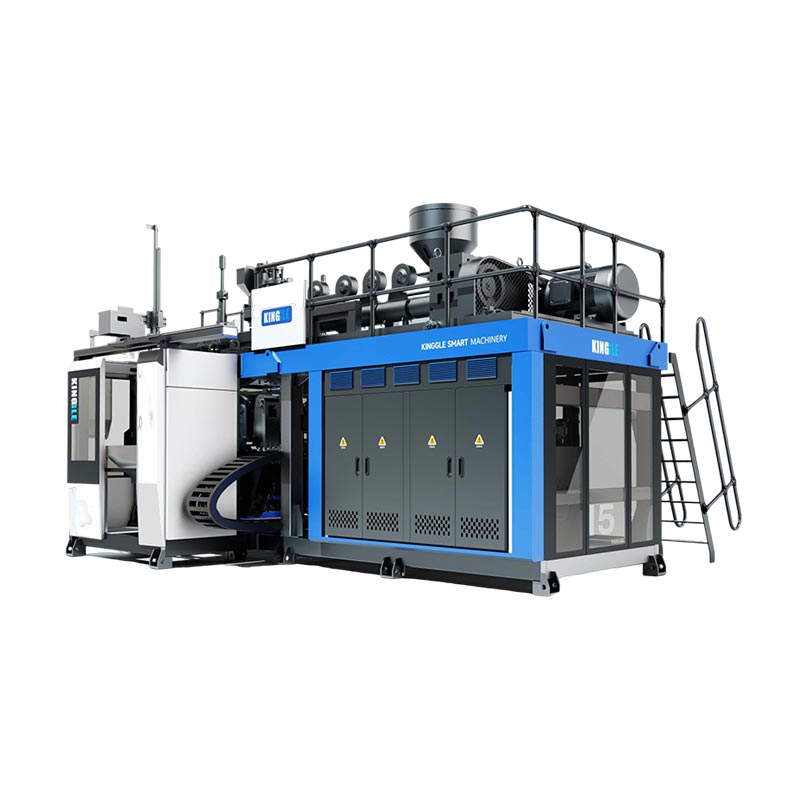

15l duplex statione ictu CUMATIUM Apparatus

Model:KGB15D

Maximize tua productio cum nostram versatile geminus-statione continua ictu CUMATIUM apparatus, disposito ad 15l. Hoc princeps-perficientur 15l duplex statione ictu coronam CUMATIUM apparatus offert flexibile configurationes, comprehendo a II, III, aut IV multi-mori setup, ut accommodate amplis continentis magnitudinum.

Volubilis: 15lPondere: 12.5t

Mitte Inquisitionem

depictio producti Specification Application

Ex parva-volumen utres ad magna 15l continentia, quos possidet plastic dolium Canite CUMATIUM Apparatus Applications, 15L duplex statione ictu CUMLATIUM apparatus ensures efficiente productionem et consistent quale. Specimen pro variis applications, comprehendo cotidie chemical cano CUMATIUM apparatus solutions, ut shampoo, lauandi purgat, et cosmetics, libertat exceptionalibus output et maximizes vestri reditus in investment.

Features et commoda

Duplex statione operationem, synchronized promotionem productio processus, significantly breviabuntur productio cycle of 30l continentia, fere duplicatur productionem facultatem comparari una statione, et efficiently occurrit necessitates magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum et efficiently ad necessitates magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum, et efficiently occurrit necessitatibus magnarum et efficiently ad necessitates magnarum, et efficiently occurrit necessitatibus magnarum et efficiently ad necessitates magnarum, et efficiently occurrit necessitatibus magnarum et productione.
Equipped cum summus praecisione foris switching fabrica, quiddam, quiddam suffocare valvae ad precise fingunt imperium, ieiunium fingunt mutatio, brevi debugging tempore, humilis defectum rate, cursus firmum productio.
Mitsubishi PLC Main Imperium, Pre-Set Program pro praecise disparet de Canite CUMATIUM parametri, manual bullarum ad operators ut calibrate ut opus, et convenient humana-apparatus commercium.
15L 15l continentia cum una-layer, duplex-iacuit, tres-layer et transparent lineas ut opus, idoneam ad packaging necessitatibus multiplicibus industries ut eget, cibum et pharmaceutical.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
