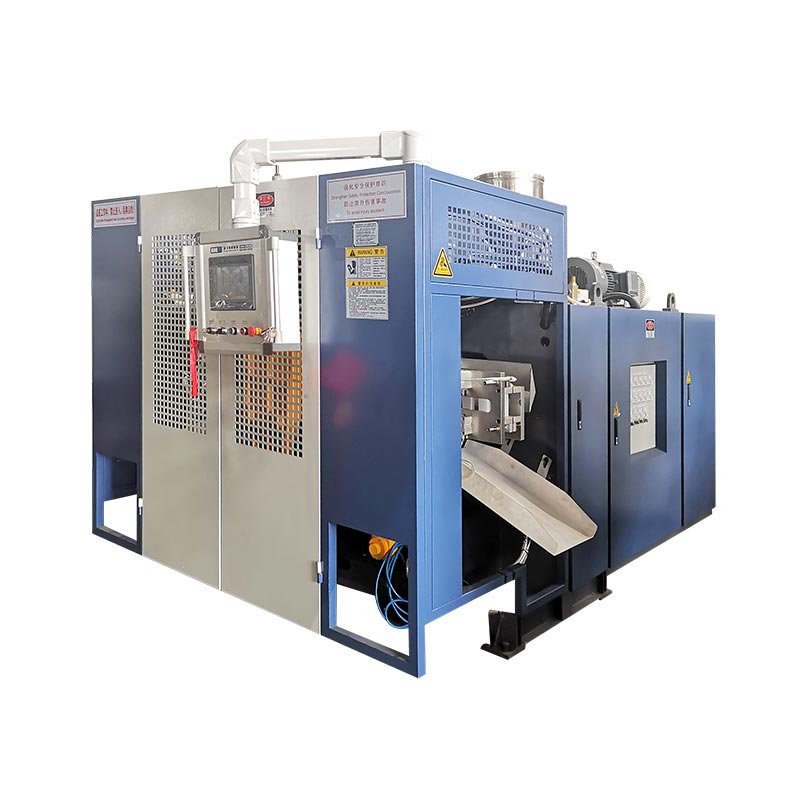

2l Geminus Station extrusionem Canite CUMATIUM Apparatus

Model:KGB2D

Maximize tua productio cum nostris princeps qualitas 2l duplici statione extrusionem cano CUMATIUM apparatus. Lorem maximam 2l continentia, hoc versatile ratio seamless adapts ad producendum amplis products.

Volubilis 2LPondere: 4.5t

Mitte Inquisitionem

depictio producti Specification Application

Facile switch ad II, III, aut IV multi-die capite configuratione ad accommodare minor volumes, faciens idealis pro diverse applications. De shampoo utres ad lac utrem cano CUMATIUM apparatus necessitates, 2L duplex statione extrusionem Canite CUMATIUM apparatus delivers consistent quale et eximia output. Explore noster competitive plastic utrem cano CUMATIUM Apparatus pretium et reserare potentiale ad auctus profitability.

Features et commoda

Et provectus electronic potestate ratio potest esse in "dolor cerebrum" ex operatione, instructa cum Mitsubishi PLC control, cum precise praedet uerius processibus et facultatem ad perficiendum universa instructiones accurate. In eodem tempore, in cogitantis consilio independens manual bullarum concedit operators ad cito ut incipiat et facilius calibrate variis parametri cum adversus inopinatum res aut minor temperatio necessitatibus, optimize apparatus vel minore temperatio necessitatibus humana apparatus.
In pacto et multifunctional features focus in parva-scale productio parvi et medium-amplitudo vasis 2l et infra. Optimized corpus consilium Achieves maximum efficientiam in limitata spatio, occupat parva area, facile est, et perfecte adapts variis productio officia layout. Utrum parva officina vel magna scala officinas potest facile regi, providing specimen productio solutiones ad conatibus diversis magnitudinum.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
