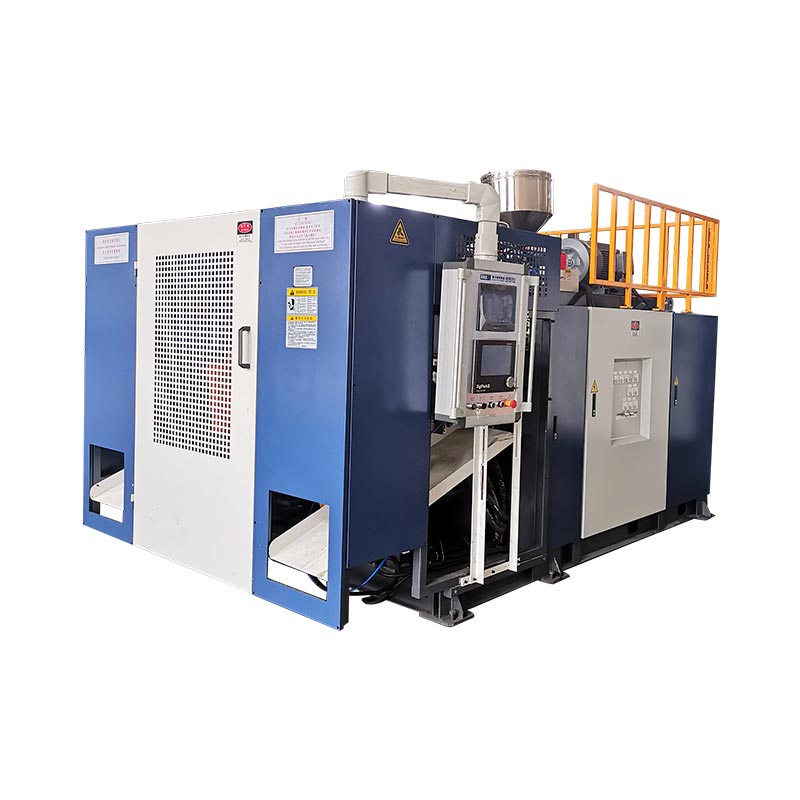

5L Single Station Canite CUMATIUM Apparatus

Model:KGB5L

Usus flexibilitate et efficientiam nostri una-statione continua ictu CUMATIUM apparatus. Disposito enim usque ad 5l vasis, 5L una statione ictu CUMATIUM Apparatus offert Fusce configurations, comprehendo a dedicated II cavum clandum CUMATIUM apparatus optionem, in occursum tuum propria productionem necessitates.

Volumen: 5LPondere: 3.0t

Mitte Inquisitionem

depictio producti Specification Application

Utrum vos requirere a dedicated 5l una statione ictu coronam CUMATIUM apparatus setup vel opus ad aptet mutantur foro postulat, hoc apparatus praebet unmatched versatility et efficientiam. Contact Us Hodie explorarent nostri competitive Morbi cursus sapien et invenire quam hoc apparatus potest elevare vestri productio capabilities.

Features et commoda

● uno statione translational fingunt shifting mechanism, instructa cum praecisione quiddam suffocare valvae ad curare lenis et efficiens FORMA shifting operationes.
● est mori caput est disposito cum centralized pascens ratio, optimizing materia distribution ad auctus productum qualitas.
● Advanced Electronic Imperium Ratio est Powered by Mitsubishi PLC, et venit cum independens manual bullarum, permittens operators ut velox et accurate correscert et referendo cum otium.
● cum maximum productum volumine facultatem 5l, quod stat sicut summo arbitrium ad humilis-volumine productio de vasis vndique a 2l ad 5l.
● in terms of productum characteres, quod offert Versatile options possidet uno-layer, duplex-layer, tres-stratum structuras, tum transparent variants ad occursum diversimode foro postulat.
● et hydrau ratio features differentiale consilio, tradens princeps efficientiam et celeri responsio celeritatum, significantly boosting altiore productio efficientiam.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
