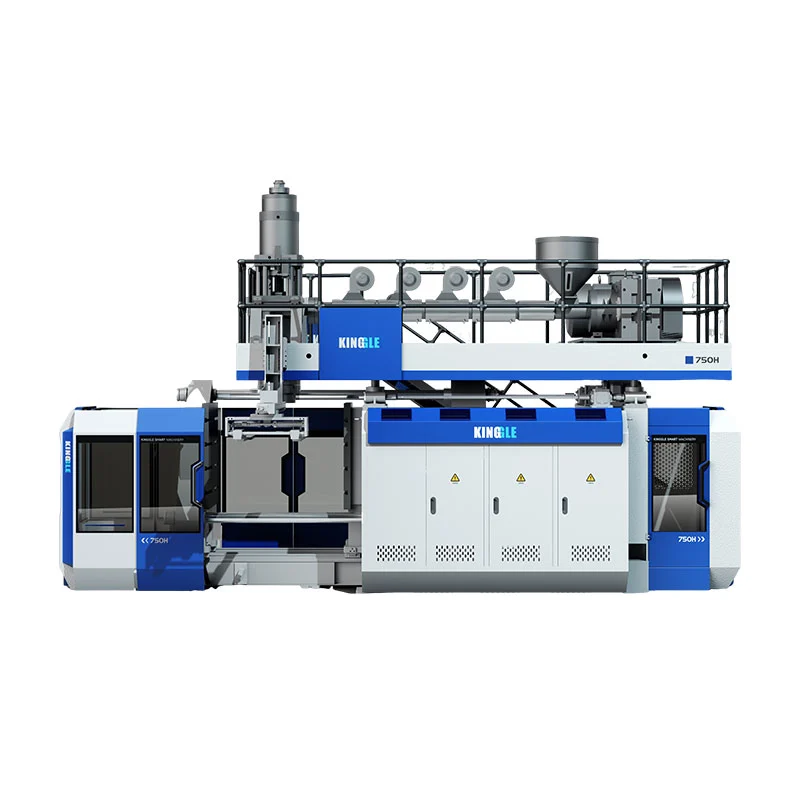

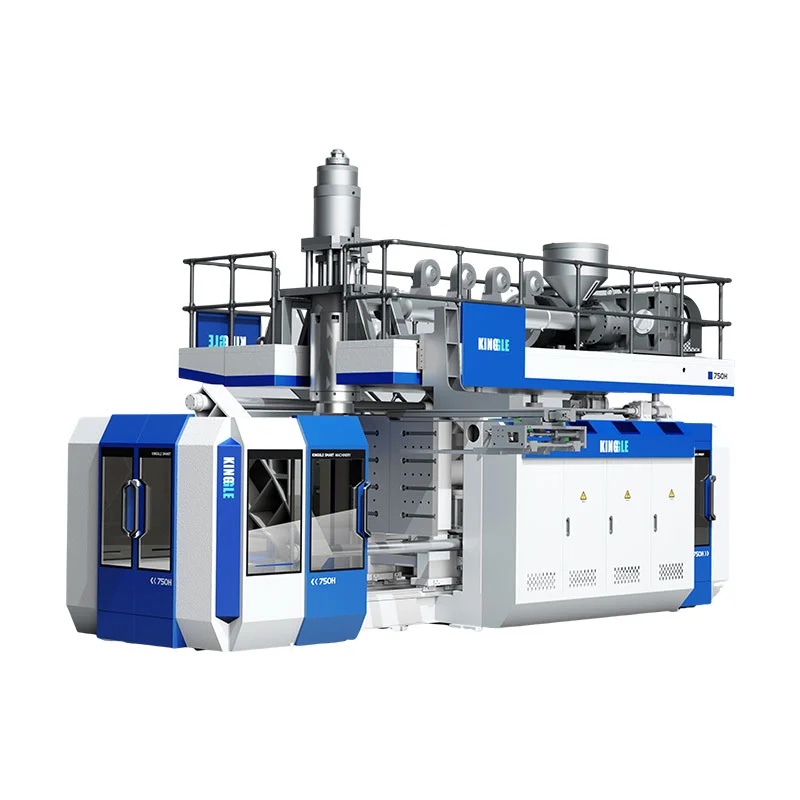

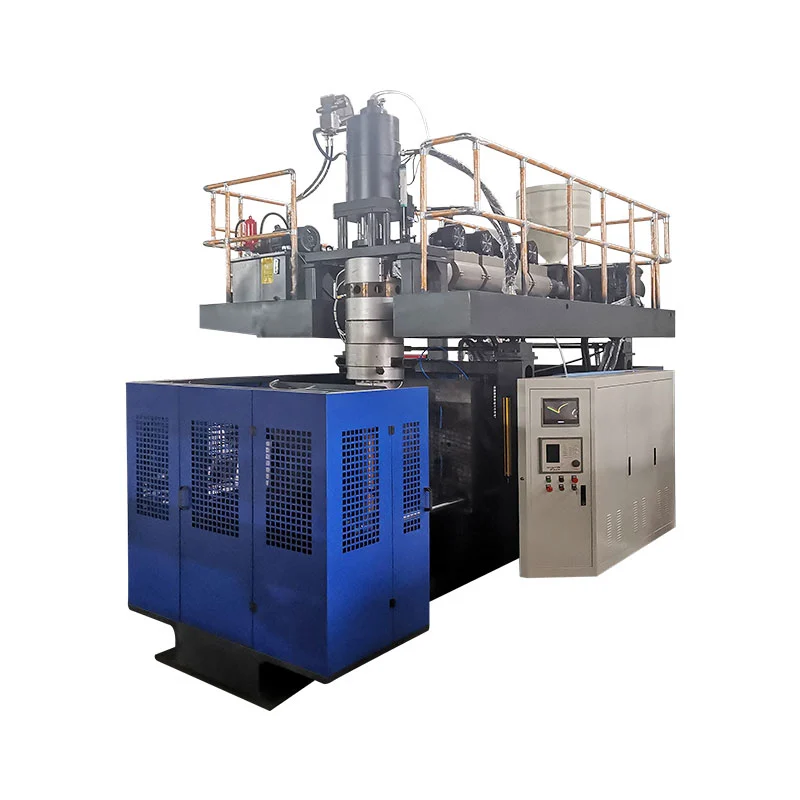

60l accumulare Canite CUMATIUM Apparatus

Model:KGB90A

Hoc fixum foramen et claudendo ictu CUMATIUM apparatus, featuring duplex viverra virga synchronous clamping et oleum cylindricum direct pressura obfirmatis densis fingunt, delivers altum perficientur et efficientiam. Hydralic servo instructa ratio pro ieiunium responsionem et industria savings, hoc 60l accumulare ictu CUMATIUM apparatus excedit in producendo amplis products, ex minoribus vasis ad maioris voluminibus.

Volume: 60LWeight: 14t

Mitte Inquisitionem

depictio producti Specification Application

In Latin KGB90a Model, A ducens Accumulator caput Canite CUMATIUM Apparatus, includit a Moog C crassitudine moderatoris, robot brachium et deorsum systematis, enhancing productivity et uber qualitas. Hoc 60l accumulare Canite CUMATIUM apparatus est specimen pro variis applications, inter eget tympanum cano CUMATIUM apparatus solutions, plastic extrusionem cano packaging Machina, ac talkets, velit aquae, tolboxes, et negotiationis claustra.

Features et commoda

Hoc exemplar est certa fingunt foramen et claudendo genus, uti a duplex colligationem virga synchronous FORMA Closing mechanism, et oleum cylindri recta pressura clamping
● repono cylindri die caput seriem
● Maximum Volume 60l
● apta eget packaging cados, magna nugas, ABS currus Tailfins, etc.
● per unique technology, fingunt clamping pressurization system, magna clamping vis, ieiunium fingunt fingunt clam celeritas, brevi productum cycle

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

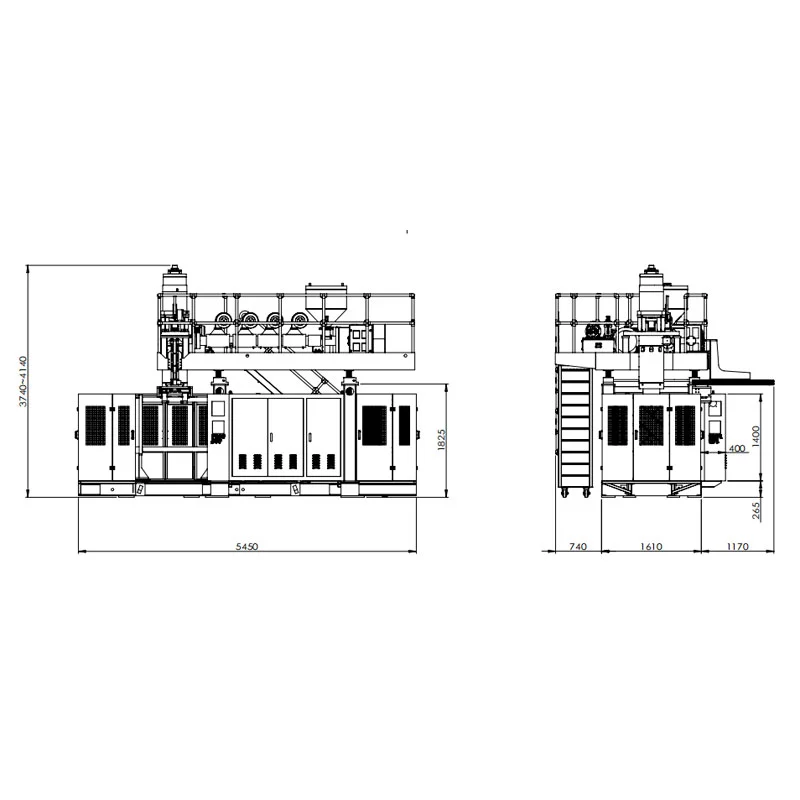

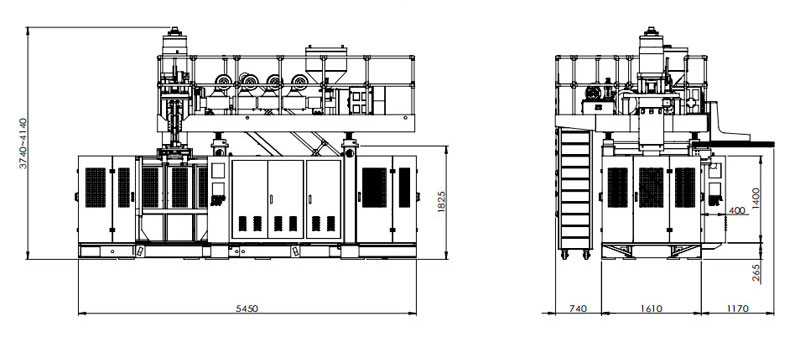

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
