15l duplex statione ictu CUMATIUM Apparatus

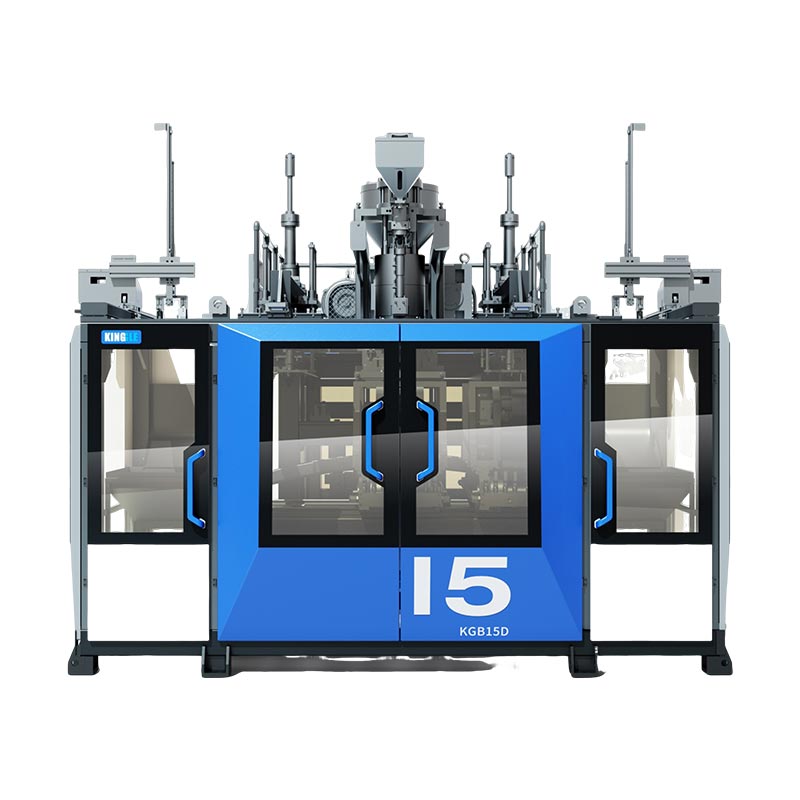

Model:KGH15D

Revolutionize vestra utrem productio cum KGH15D, 15l duplex statione ictu CUMATIUM apparatus quod accipit plastic utrem extrusionem Canite CUMATIUM Apparatus Applications ad novum iuga! Perfect enim 10L automatic canere CUMATIUM apparatus applications quasi 10l et 15l utres, adiuvat te dominari in foro cum summo-species output.

Volubilis: 15lWeight: 18.5t

Mitte Inquisitionem

depictio producti Specification Application

Revolutionize vestra utrem productio cum KGH15D, a excelsum species 15l duplex statione ictu coronam CUMLATIUM apparatus quod elevat plastic utrem extrusionem ictu CUMATIUM ad novum iuga. 15L utres disposito pro applications quasi 10L Et KGH15D ensures efficient productionem summus qualitas continentia cum eximia praecisione. Utrum magnam scale vestibulum vel consuetudine Applications, hoc apparatus pollent Top-Tier output, auxilium vobis manere praemisit in foro. Et provectus features et reliable perficientur, in KGH15D praebet perfectam solutio ad negotiis quaerimus optimize Productio et augendae uber qualitas.

Features et commoda

Maximize tua productio cum nostris geminus-statione continua ictu CUMATIUM apparatus, disposito continentia usque ad 15l. With flexible configurations (2, 3, or 4 multi-die head setups), it handles a wide range of container sizes, from small bottles to large 15L containers and plastic barrels, ensuring efficient production and consistent quality.
Specimen pro applications quasi shampoo, lauandi purgat, et stibio packaging, hoc apparatus delivers summus celeritas productionem dum maintaining summo-ordo qualitas. Eius versatility et efficiens consilium auxilium redigendum vastum et proventus output, faciens illud sumptus-effective solution quod maximizes vestri reditus in investment.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
