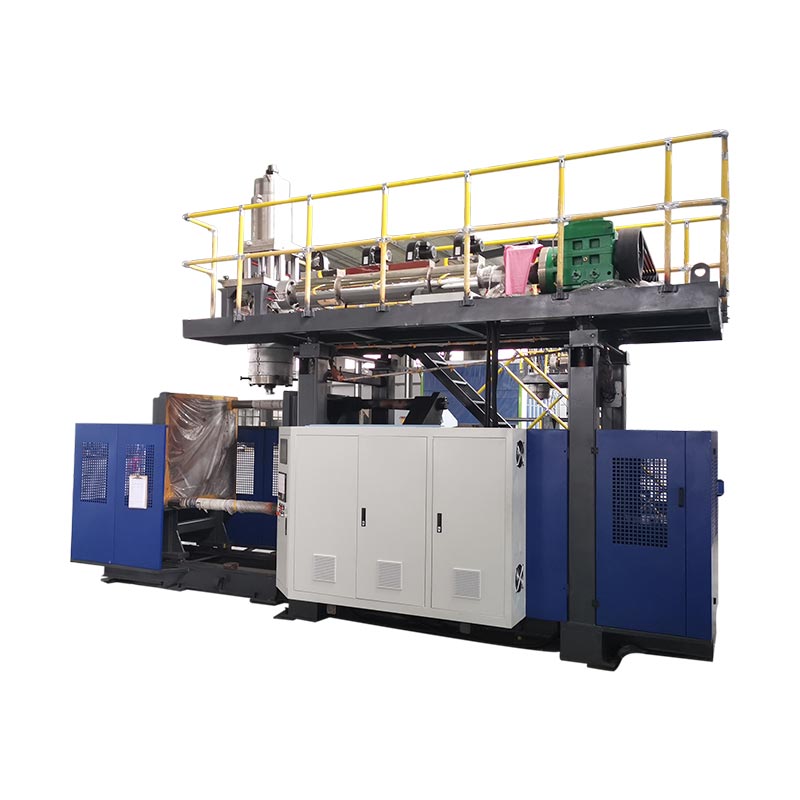

160L accumulare Canite CUMATIUM Apparatus

Model:KGB110A

Hoc 160L accumulare ictu CUMATIUM apparatus a kinggle elit, featuring duplex viverra virga synchronous clamping et oleum cylindricum direct pressura obfirmatis densis fingunt, delivers excelsum et efficientiam. Hydralica servo ratio ad ieiunium responsionem et industria savings, hoc apparatus excedit in producendo amplis products, ex minoribus vasis maioris voluminibus.

Volubilis: 120LPondus: 22t

Mitte Inquisitionem

depictio producti Specification Application

In Latin KGB110a Model, A ducens Accumulator caput Canite CUMATIUM Apparatus, includit a Moog C crassitudine moderatoris, robot brachium et deorsum flante Ratio, enhancing productivity et uber qualitas. Hoc KingGle High Quality 160L accumulare Canite CUMATIUM Apparatus est specimen pro variis applications, comprehendo eget tympano Canite CUMATIUM Machina solutions, plastic extrusionem cano CUMATIUM apparatus processibus, supernatet Canite CUMATIUM Apparatus Applications et productio eget packaging Dolia, currus obterere, toy ictu CUMATIUM apparatus applications, auto partes: Aenean claustra, medicina supellectilem, natantes buoys, chairs, et tables.

Features et commoda

Fodere altum in potential de technology potest praebere unum-layer summus viribus productum solutions pro customers qui persequi cost-efficaciam; Potest etiam construere geminus-layer vel multi-iacuit compositum structurae exquisita artificiis.
Nildo key operationes 110a Canite CUMATIUM Apparatus cum robust et fideles hydraulica potentia ratio. Continua et firmum potestatem transmissio ensures agilis et potens ostium et claudendo de fingunt, lenis et efficientem operationem ex extruditor, et in faciem longa-term et summus intensionem et stably output altus-qualitas products et stably output potest semper products.

Specifications

serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS...	Machine model:KGB110A
Specifications
1	Max container capacity	120 L
2	Output(dry Cycle)	320 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	22T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1400 MM
3	Platen opening stroke	600 MM - 1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MMx1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	200 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	52 KW -60 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	160 Kg/hr-200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	75 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	35 KW
3	Max die-pin diameter	450(600) MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
