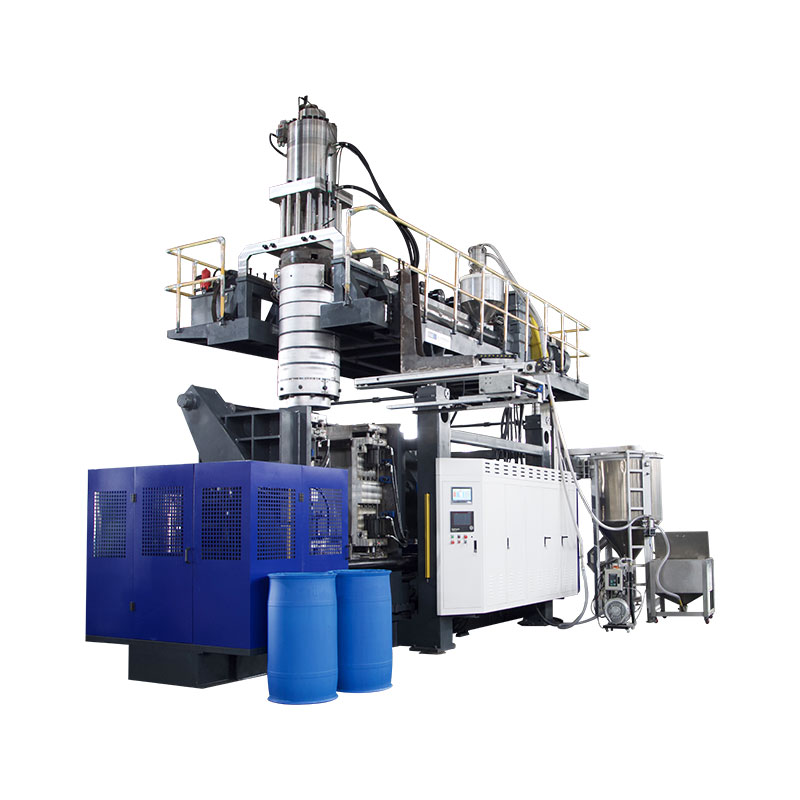

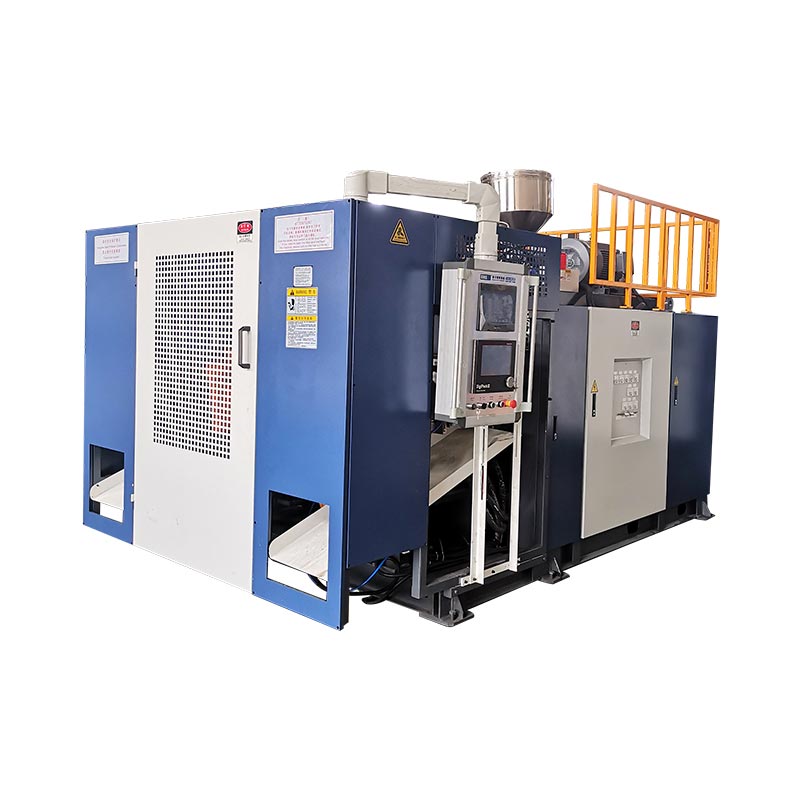

250L cumulare eget dolium specialis Canite CUMATIUM Apparatus

Model:KGB200L/LP

Hoc specialized 250L accumulare eget dolium speciali ictu coronam CUMATIUM apparatus est specie disposito producendo summus qualis 220l geminus-circulum hyacintho eget dolia. Utrigining fixum aperta claudendo mechanism cum obliquo brachium duplex Drakbar synchronous clamping ratio, ensures firmum et durabile Mutare clamping.

Volume: 250LPondere: 39T

Mitte Inquisitionem

depictio producti Specification Application

Et patented geminus-layer, duplex, browrow Accumulator die caput, combined Cum summus perficientur extruder unitas, libertat eximia praecessi. Hoc Chemical dolium Canite CUMATIUM Apparatus incorporat a Moog C crassitudine Controller, robot brachium et deorsum flante ratio ad amplificata efficientiam. Et produci tympana occursum restrictius qualitas signa, inter transiens III-meter gutta test et obtinendae un certification.

Features et commoda

Duplex, involvens horizontali bar centrum iniectio repono cylindri mori caput
● Achieving princeps productio facultatem per optimized consilio et praecisione Manufacturing, producendo 17-20 pieces / hora
● et cados produci potest transire 3m gutta test et completum un certification

200L Berel Weight: 12-15 kg

Material: hmwhdpe

Crassitudo: 3.5-4 mm

Hoc specialized eget dolium Canite CUMATIUM Apparatus est disposito pro efficient productionem summus qualis 220l geminus-anulum hyacintho eget cados. Utrigining certum aperta-claudendo mechanism, et obliquum brachium duplex Drakbar synchronous clamping system, et patented duplex-layer, duplex-browrow accumulator die caput, libertatem exceptionalibus perficientur.

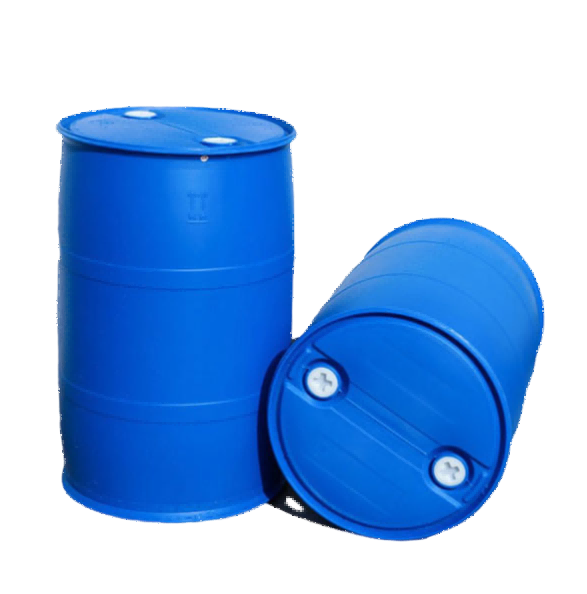

Double layer 220L double-ring chemical barrel blow molding machine

Tractus

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR

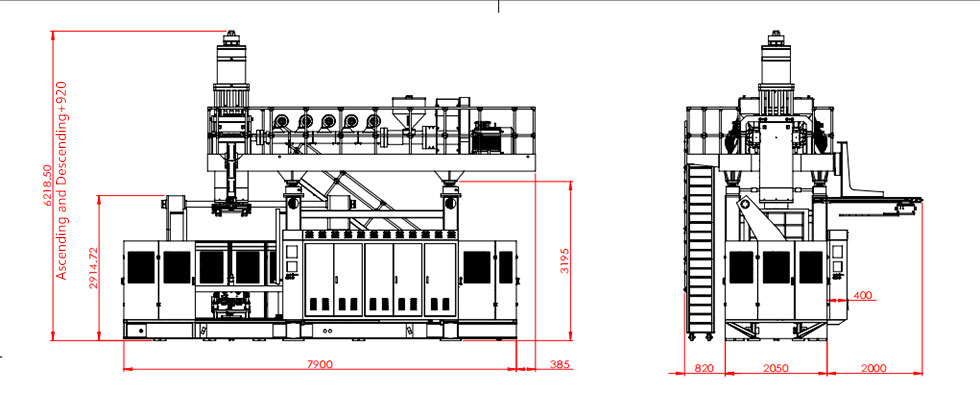

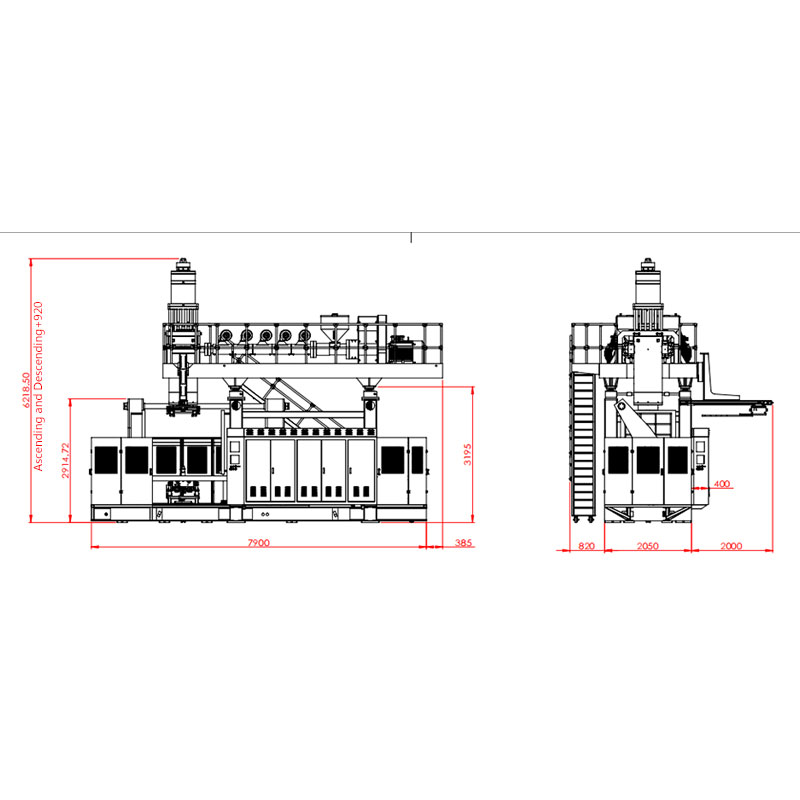

3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
