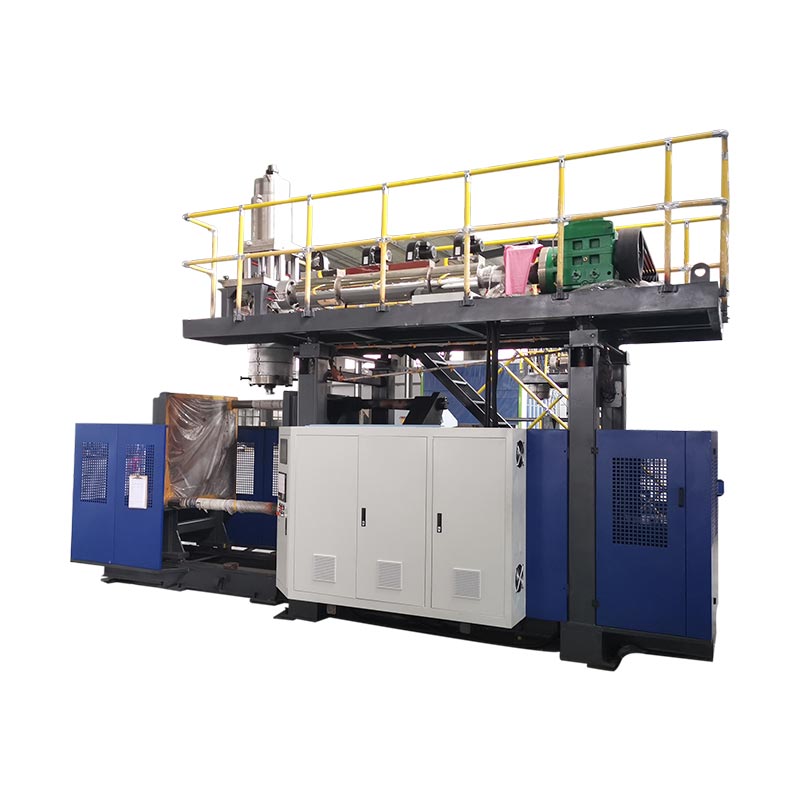

30l duplici statione ictu CUMATIUM Apparatus

Model:KGB100DB

Et KGB100DB est praecisione-Engineered 30L duplex statione ictu coronam CUMATIUM apparatus, updated in summus productio ictu CUMATIUM apparatus applications. Disposito pro magis firmum 30l duplex statione plastic-faciens apparatus necessitatibus, ut Jerrycans et eget continentia, id ensures species et efficientiam.

Volume: 30lWeight: 23t

Mitte Inquisitionem

depictio producti Specification Application

KGB100DB est 30L duplex statione ictu CUMATIUM apparatus, suite pro Illae summus celeritas productio cum accuracy crassitudine imperium postulationem customers. Non solum iusto figura speciale figura aptior Nam hoc exemplum CUMATIUM Apparatus. Includit a Moog C crassitudine Controller, robot brachium et deorsum flante ratio, enhancing productivity et Product qualitas.

Features et commoda

Cumulare caput cum duplex statione
Fixum fingunt foramen et claudendo mechanism: equipped cum duplex colligationem virga synchronous fingunt claudendo ratio et geminus-statione ictu coronam CUMAGIUM apparatus, cursus et firmum alignment. Et oleum cylindri recta applicat pressura ad certum fingunt obfirmatis densis.
Cylindro die capitis seriem: disposito pro consistent material fluxus et summus qualitas productum formationem.
Magna facultatem: sustinet a maximum uber volumine 120L, faciens ideale pro producendo magna-amplitudo vasis et industriae partes.
Hydraulic Servo Ratio: features Advanced Hydraulic servo potestate, tradens ieiunium actio responsio, princeps industria efficientiam, et reducitur operational costs.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB100DB
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	650 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	6.4 M x 6.2 M x 4 M
4	Machine weight	23T
Clamping Unit
1	Clamping force	215 KN
2	Mold platen size(W×H)	750MM×860 MM
3	Platen openingstroke	350 MM -850 MM
4	Platen moving stroke	/
5	Max mold size(W×H)	520 MM ×860 MM
6	Mold thickness	360 MM -420 MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	0.7 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	45 KW - 60 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	160 Kg/hr -200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	22.4 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	22.8 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	5 L
5	(PE)Accumulator weight	3.75 KG
