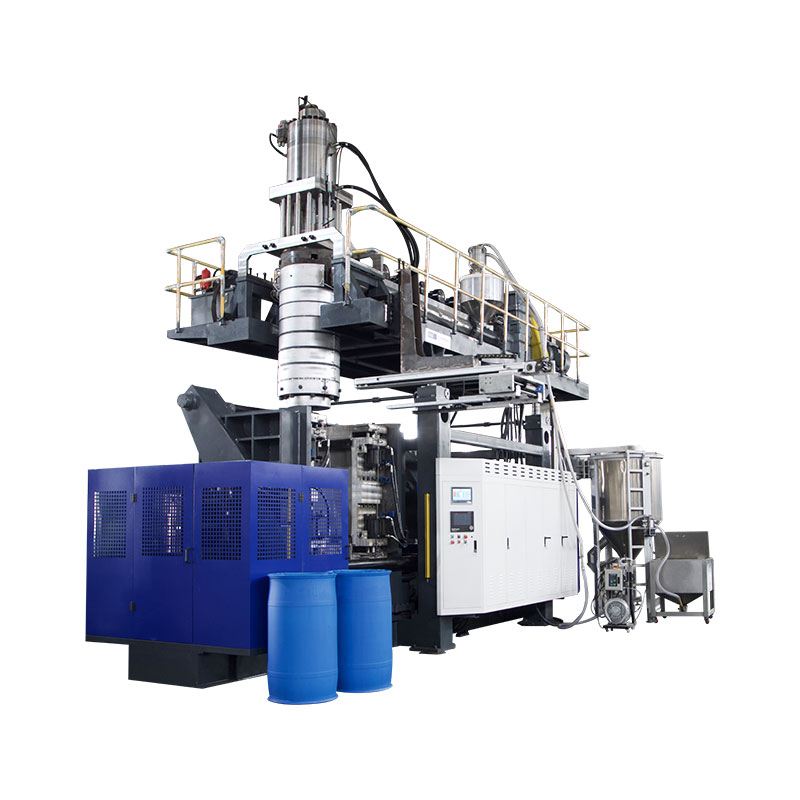

CCXX liter plastic tympanum CUMATIUM Apparatus

Model:KGB200L

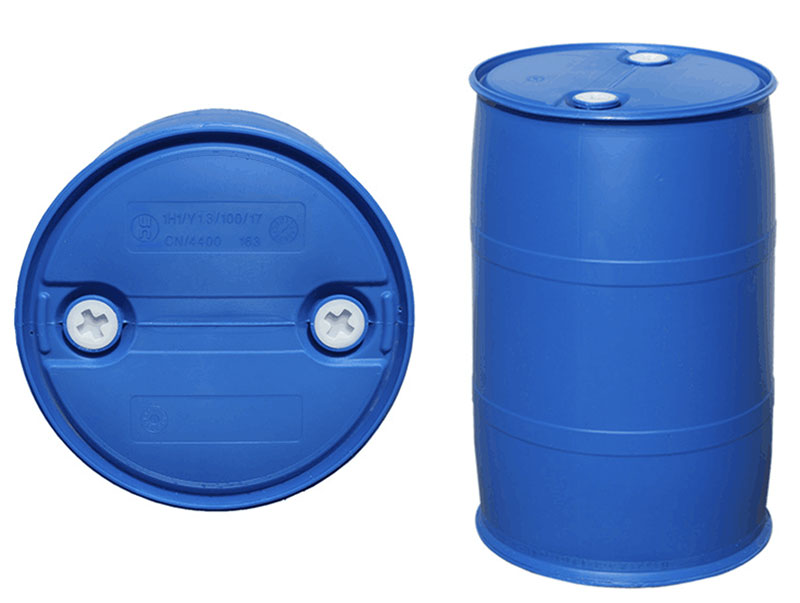

Et KGB200L est praecisione-Engineered CCXX liter plastic tympanum cano CUMATIUM apparatus, optimized ad hyacintho eget tympanum-faciens apparatus applications. Nam CC sextarius plastic tympanum Canite CUMATIUM apparatus necessitates, ut eget et industriae tympana, id ensures altum chemical resistentia et structural integritas. Potest transiet III meter gutta test impetro un certificatorium.

Volume: 250LPondus: 36t

Mitte Inquisitionem

depictio producti Specification Application

Et Accumulator M. Caput, cum summus perficientur extruder unit, libertatem exceptis praecessi. Hoc CCXX sextarius plastic tympanum CUMATIUM CUMATIUM Apparatus incorporat a Moog C crassitudine controller, robot brachium et deorsum flante System enim decorarat efficientiam. Et produci tympana occursum restrictius qualitas Signa, inter transiens in III-meter gutta test et obtinendae un Certification.

Features et commoda

Duplici-Bar Center Iniectio Cylindrici Iniectio Cylindrum PRAECLUSIO PRAECLUSIO Cylindri
Achieving princeps productio facultatem per optimized consilio et praecisione vestibulum, capax producendo8 pieces / hora

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB200L
Specifications
1	Max container capacity	250L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M×6.5 M
4	Machine weight	36T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x1500 MM
3	Platen openingstroke	800 MM -1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM ×1700 MM
6	Mold thickness	810 MM - 950 MM
Power
1	Servooil pump motor power	37 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	110(132) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
