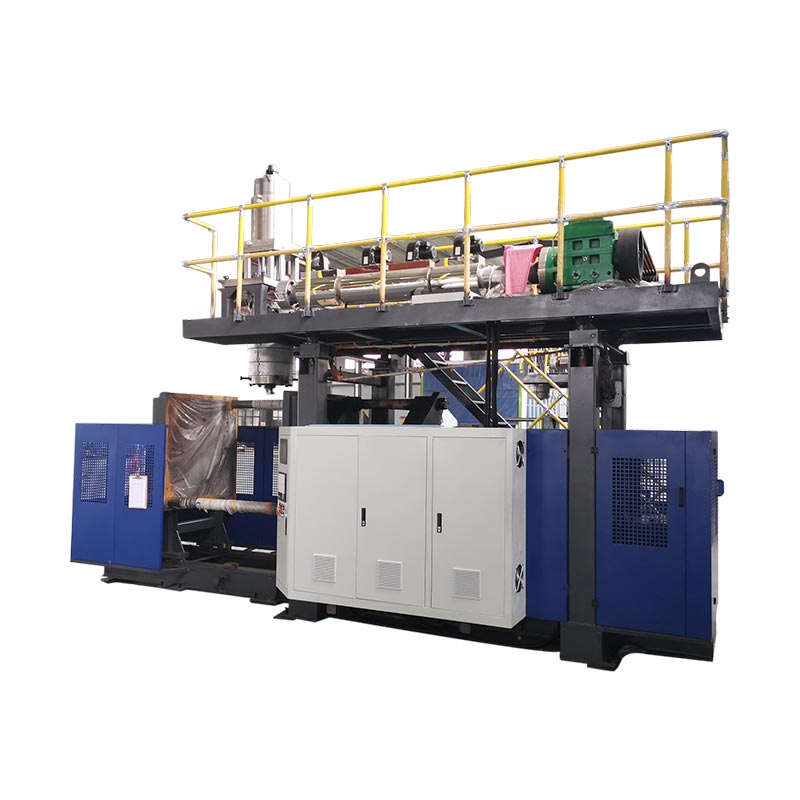

CLXXXIII plastic mensa faciens apparatus

Model:KGS120Z

KGS120z est cutting-Edge CLXXXIII plastic mensa faciens apparatus tailored pro circum mensam ictu CUMATIUM apparatus applications. Plene obvium plastic mensa plastic pannel extrusionem canere CUMATIUM apparatus requisita, offert customized consilia et superior qualis dare vobis competitive obstupuerunt.

Volumen: 1000LPondus: 38t

Mitte Inquisitionem

depictio producti Specification Application

CLXXXIII KGGS120z plastic mensa faciens apparatus est creare ad plastic panel genus uber, ita Ut mensa / Ware Domus etc. Custen Platen Canite CUMATIUM Apparatus potest perfect Occursum eorum specialem magnitudine productionem productionem requisita, cum summus celeritate productio salvificem unitas sumptus.
Includit a Moog C crassitudine moderatoris, robot brachium et deorsum Flante ratio, enhancing productivity et qualitas.

Features et commoda

Propter vestibulum products in variis industrias. Utrum sit magna capacitas corrosio-repugnans continentia in eget industria, packaging utres cum stricte hygiene signa in cibis industria, aut packaging boxes cum exquisitiis quotidianum products, potest esse pressius ad occursum diversimode foro potest esse pressius ad occursum diversimode foro non potest esse pressius ad occursum diversimode forum.
Et pascens processus adoptat secans-ore technology et optimized secundum summus capacitatem productio characteres de 120z Canite CUMATIUM Apparatus. Certe moderari fluunt rate et distribution of rudis materiae ad curare uniformis murum crassitudine per coronam in quantum magna volumine products, efficaciter confirma structuram fortitudinem, et eliminare qualis defectus in inaequalis pascens.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(single cylinder)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	38 T
Clamping Unit
1	Clamping force	1200 KN
2	Mold platen size(W×H)	1300 MM×1900 MM
3	Platen openingstroke	600 MM-1600 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1000 MM×2000 MM
6	Mold thickness	630 MM - 830 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	700(800) MM
4	Accumulator capacity	25(30) L
5	(PE)Accumulator weight	18(22) KG
